RADIUS 802.1x Configuration
3min
If you use Kron PAM for 802.1x RADIUS Authentication Services, configure the settings below:
- Obtain the authentication server CA certificate.
- Create a network profile via the manual connection wizard:
- Select the Security Type as WPA2 Enterprise.
- Select the Encryption as AES.
- Select the Authentication Method as PEAP.
- To adjust the PEAP Properties:
- Check the Verify the server’s identity by validating the certificate box.
- Select CA certificate of the authentication.
- Select the Authentication Method as MSCHAPv2
- Add the authentication server CA certificate to the Trusted Root Certification Authority using the MMC (MS Management Console) certificate plug-in.

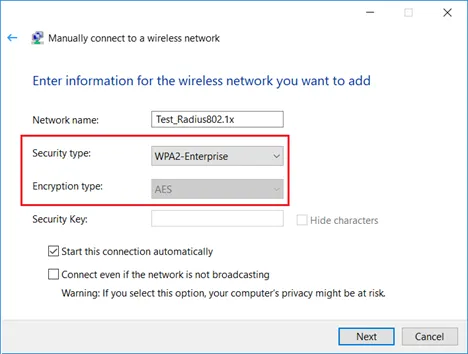

- Create a network profile via the manual connection wizard:
- Select the Security Type as WPA2 Enterprise.
- Select the Encryption Type as AES.
- Select the Authentication Method as MS Protected EAP (PEAP).

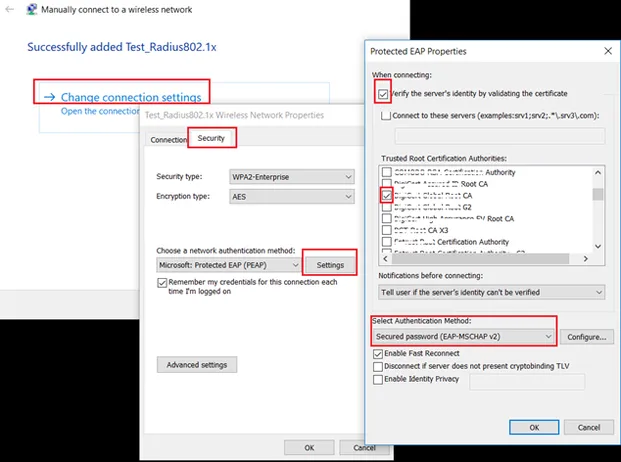

- To adjust the PEAP Properties:
- Check the Verify the server’s identity by validating the certificate box.
- Select the authentication server CA certificate from the Trusted Root Certification Authority list.
- Select the Authentication Method as EAP-MSCHAP v2.
![Document image Document image](https://images.archbee.com/g9cApVza9NIhSh0pjZYtA/cOK1dYRFMxuafLxNC1Ibd_image.png)
![Manual Network Settings for Windows Manual Network Settings for Windows](https://images.archbee.com/g9cApVza9NIhSh0pjZYtA/x9WOjcUMf3wnDP8MHZ7zB_image.png)
Manual Network Settings for Windows
- Obtain the CA certificate of the authentication server.
- Create a network profile via the manual connection wizard:
- Select the Wi-Fi Security as WPA2 Enterprise.
- Select the Authentication as PEAP.
- To adjust the PEAP Properties:
- Select CA certificate of the authentication server.
- Select the InnerAuthentication as EAP-MSCHAPv2
![Manual Network Settings for Linux Manual Network Settings for Linux](https://images.archbee.com/g9cApVza9NIhSh0pjZYtA/fD9xDhJEBRmGpAAYjkVmw_image.png)
Manual Network Settings for Linux
