Adding Regions and Instances from Instance Controller

2min

Navigate to Administration > Instance Controller > Regions.
Enter the following fields.
Region Parameters
Field
Definition
Region Name
This parameter defines the region name.
Description
Description of the region name
Web URL
Web URL of the region
﻿

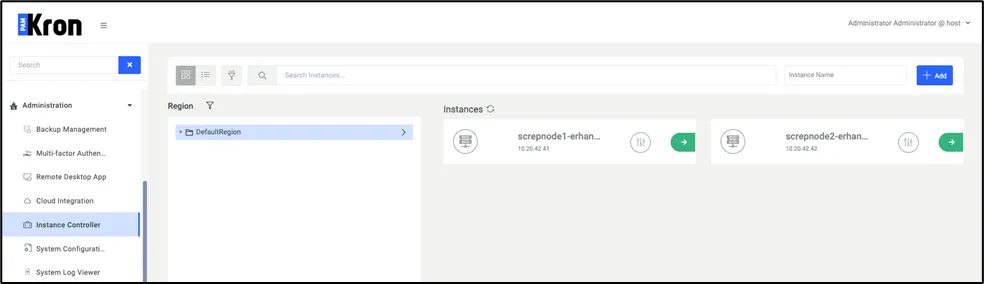

Navigate to Administration > Instance Controller> Instances.
Enter the following fields:
 Instances Parameters
Field
Definition
Region
Select the related region from the list.
IS Instance Name
It is the name of the instance that should be added. The name of the instance must be the same as the name in netright.properties file.
IS IP
It is the IP of the instance.
Priority
Defines the priority order and clarifies when the corresponding instance will take the mastership if the master is down. 0 is the highest priority.
Authentication Method
Authentication Method (SSH Key, Password)
Username
Username
SSH Key
Insert the SSH key in case the authentication method is selected as the SSH Key.
Password
Insert the password in case the authentication method is selected as Password.
﻿

Field	Definition
Region Name	This parameter defines the region name.
Description	Description of the region name
Web URL	Web URL of the region

Field	Definition
Region	Select the related region from the list.
IS Instance Name	It is the name of the instance that should be added. The name of the instance must be the same as the name in netright.properties file.
IS IP	It is the IP of the instance.
Priority	Defines the priority order and clarifies when the corresponding instance will take the mastership if the master is down. 0 is the highest priority.
Authentication Method	Authentication Method (SSH Key, Password)
Username	Username
SSH Key	Insert the SSH key in case the authentication method is selected as the SSH Key.
Password	Insert the password in case the authentication method is selected as Password.
