Wildfly Configuration Strategy

This section will explain how to change the passwords of the users defined in the Datasources of Wildfly Server with the help of Application Configuration and Trigger.

WinRM service must be installed on those servers.

The HTTP PORT information must be opened for the requests for JBoss and Wildfly servers.

Wildfly Server configuration must have been completed before. The username and password information in the Security tab in Data Source must have been changed to Vault Account.

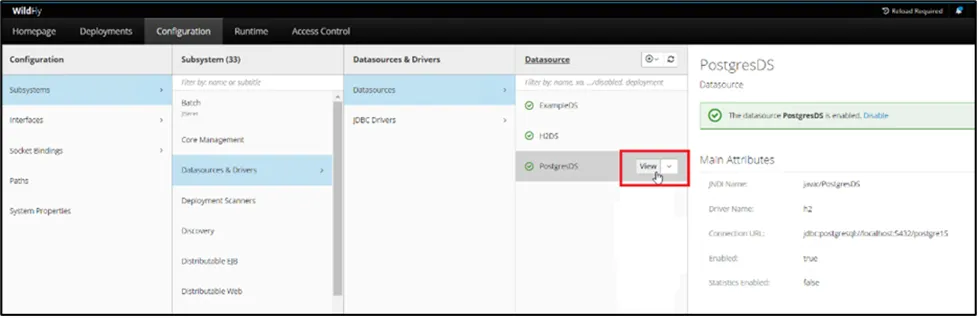

Wildfly Server Management Screen
Wildfly Server Management Screen

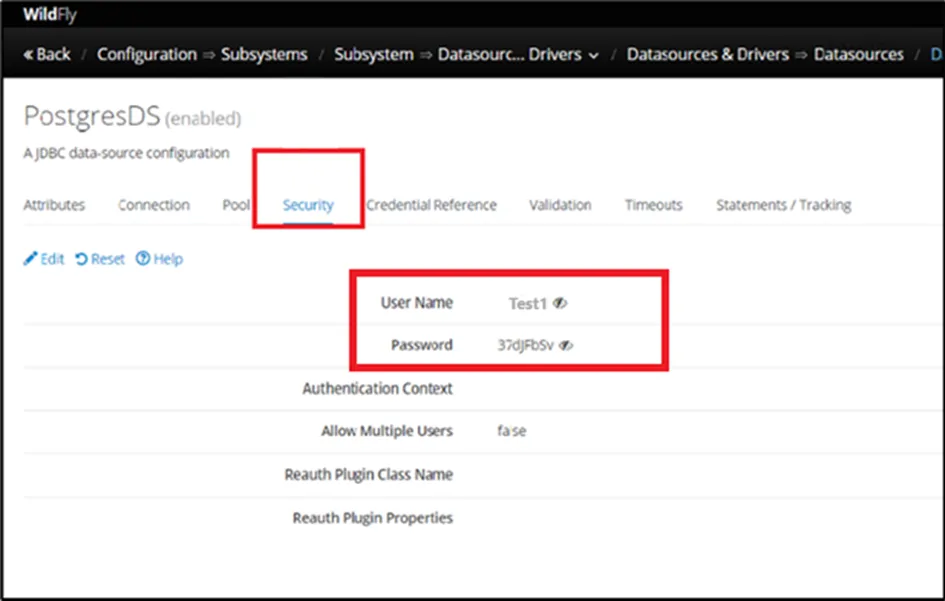

Wildfly Data Source User Definition Screen
Wildfly Data Source User Definition Screen

  • Application Trigger Config definition must be made first.
  • Navigate to Secrets > Configurations menu > Application Configuration Tab page.
  • Click the +Add Button and Enter parameters.

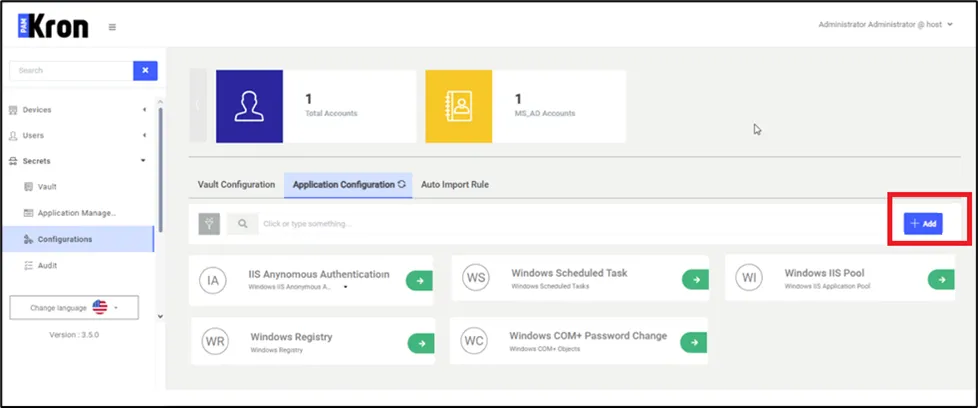

Application Configuration Management Definition Screen
Application Configuration Management Definition Screen

  • Select Wildfly as a Strategy.
  • The admin username (Service Username) and password (Service Password) information entered for connection to the Wildfly server must be defined.

An HTTP connection will be used for the Wildfly Strategy; therefore, the Wildfly Server IP and port information must be entered.

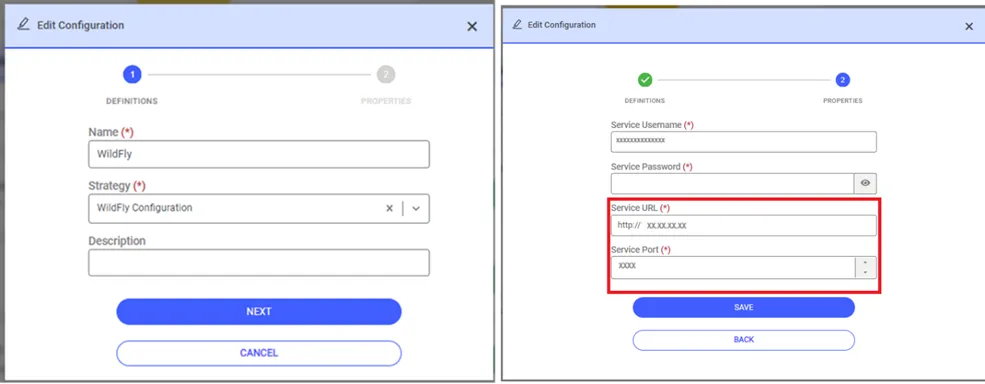

Application Configuration Definition Screen
Application Configuration Definition Screen

  1. Click the Save button.
  2. Navigate to Secrets >Application Management screen.
  3. Add a new trigger.
  4. Click the +Add button.
  5. Enter the name of the trigger in the Name field.
  6. Select the Application Configuration which defines the name above the definition value like WildFly.
  7. In the Data Source Name field, the same value name defined in Wildfly Server Data source must be entered. Otherwise, the password value will not change because the system will not find the relevant data source.

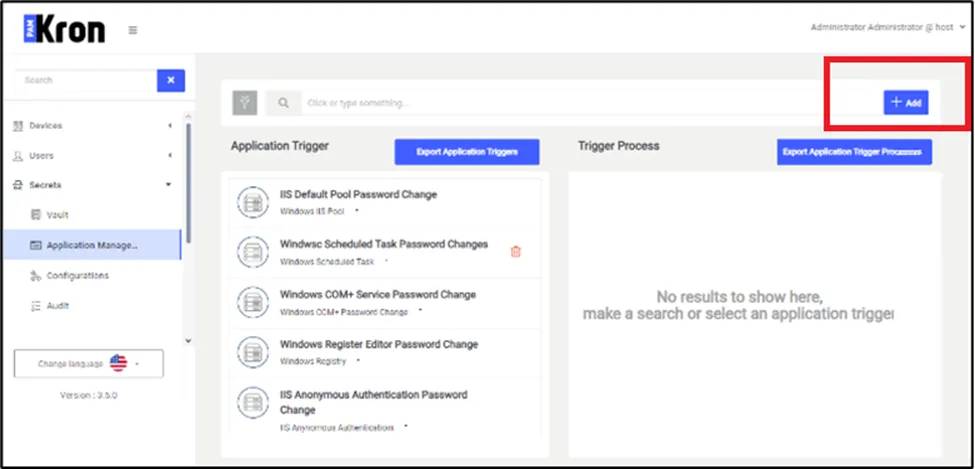

Application Management – Application Trigger Definition Screen
Application Management – Application Trigger Definition Screen

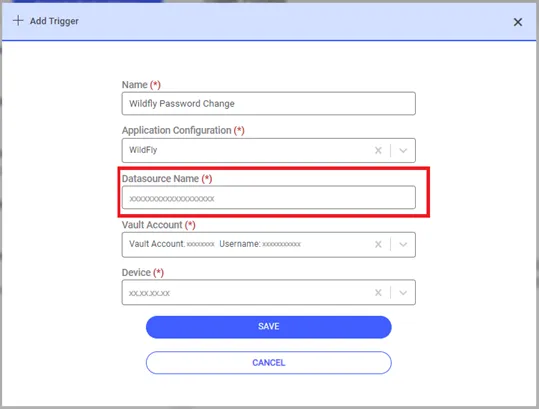

Application Management Definition Screen
Application Management Definition Screen

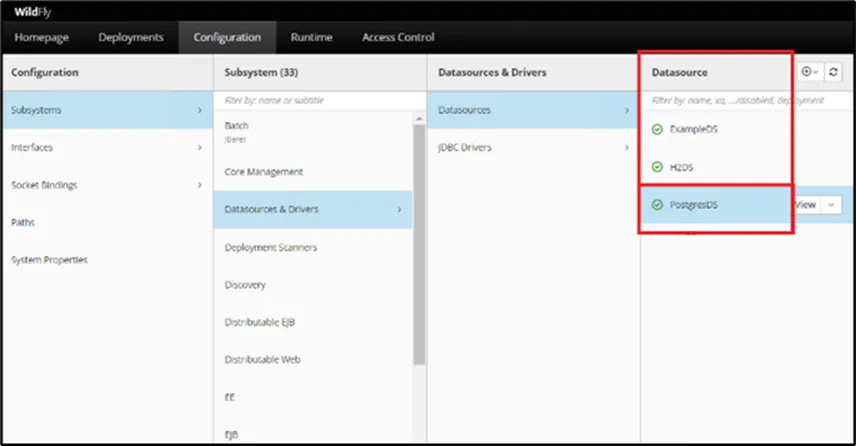

Wildfly Datasource Management Screen
Wildfly Datasource Management Screen


The Vault Account defined in Password Vault, whose password needs to be changed, must be selected. Device information where the Wildfly Server is installed and the device to be modified must be selected.

  • Click the Save.

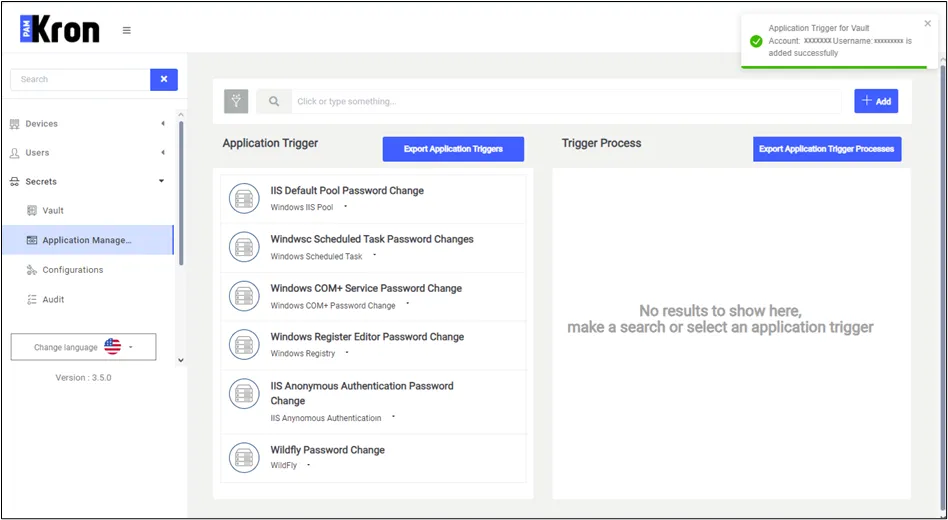

Application Management – Application Trigger Definition Screen
Application Management – Application Trigger Definition Screen


After the definition is completed, the Vault screen must be opened, and the Vault account must be selected. Whenever the Vault account is selected and the Update or Reset Password option is clicked, a trigger will be created as explained in the previous sections, and a password change will be performed.

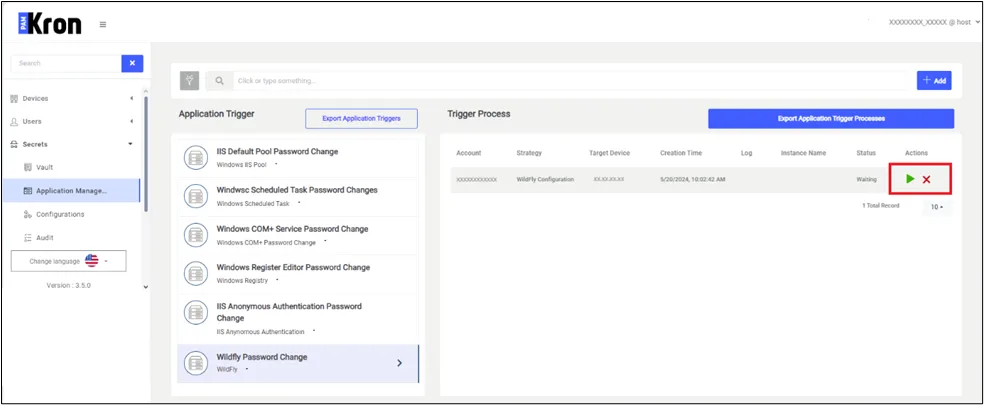

Application Configuration – Application Trigger Definition Screen
Application Configuration – Application Trigger Definition Screen
