Auto-Login Configuration
To configure Auto-Login:
- Navigate to Device Management > Element Type.
- Click the Search button and select the related webpage element created earlier.
- Click the Options menu on the left to edit the properties of the element type
- Fill in the element type properties.
Element Type Property | Explanation |
|---|---|
http.auto.login.password.matcher.template | This parameter is used to find and replace the password with the global password. |
http.auto.login.post.url | Web application/site login URL. Regex can be used to define the URL property Example: /login/device-based/regular/login/.* |
http.auto.login.username.matcher.template | This parameter is used to find and replace the username with the global username. |
http.bypass.domain | Web applications/sites can use multiple domains for images, chats, mails, etc. If you do not add these domains to the whitelist, the webpage will not be displayed as is. Some images, videos, etc. will be blocked because of the improper HTTPS certificate. |
To better understand these element properties, a Facebook login can be used as an example:
- Open facebook.com on a web browser
- Right-click the screen and click Inspect
- Click the Network tab at the top of the screen
- On the Facebook Login screen, insert a test email and password and click Login
- Facebook will return an error because the test credentials are incorrect.

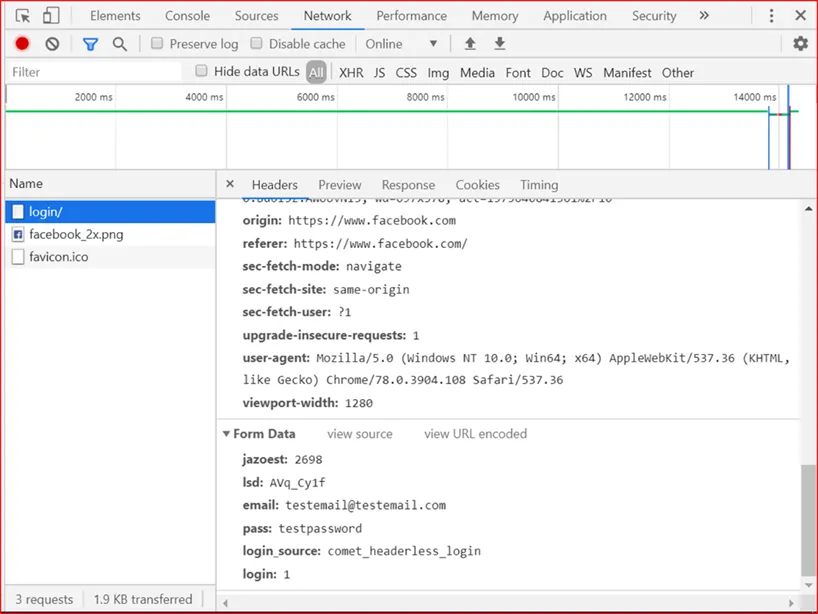

- Look at the inspection code to find the test email and password. Check the parameter’s name and configure it in the element type. On the left column, there are post URLs. These should be configured in “http.auto.login.post.url” for Facebook. It is “login” so the “http.auto.login.post.url” parameter will be defined as “/login. *“. Regex characters are needed since there could be other sub-pages, therefore, the post URL always ends with “.* ". Now look for the test username and password in the inspection code post URL. “Test username” and “test password” are posted under specific containers in the login URL. In Facebook, these parameters are email and pass. These parameters will be defined in http.auto.login.username.matcher.template as email=$$value$$(&|$), and http.auto.login.password.matcher.template as pass=$$value$$(&|$). So, these parameters will be used in the Element Type. If these parameters are different, only the red, “pass” and “email” part of the parameter definition should be changed. The other part, “=$$value$$(&|$)”, should remain the same in the definition.
- To apply all the changes made in the element type, the HTTP Proxy needs to be restarted. Restart the HTTP Proxy from the Single Connect CLI. Establish an SSH connection to Single Connect as root and run the command: systemctl restart http_prox

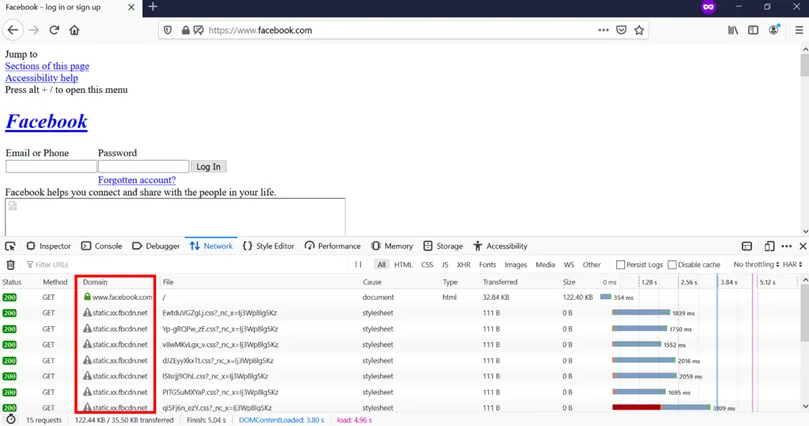

- The last element type property is “http.bypass.domain”. These are external domains that the main webpage loads some data and elements from. The Firefox web browser is used to find the bypass domains. Open the Facebook webpage by using an HTTP Proxy on Firefox. The web page will be loaded “incorrectly”. Frames can be different, photos will not be shown, etc. This means that some information or data coming from another domain is blocked, since they are not allowed. These domains are what we call bypass domains.
- Right-click the screen and click Inspect
- Click the Network tab and check the Domain column.
- Any domains other than facebook.com need to be added as bypass domains. This step should be repeated after the login page or any other page as well, to find all bypass domains.
- Once all the bypass domains are added to “http.bypass.domain”, another restart is required using the command: systemctl restart http_prox

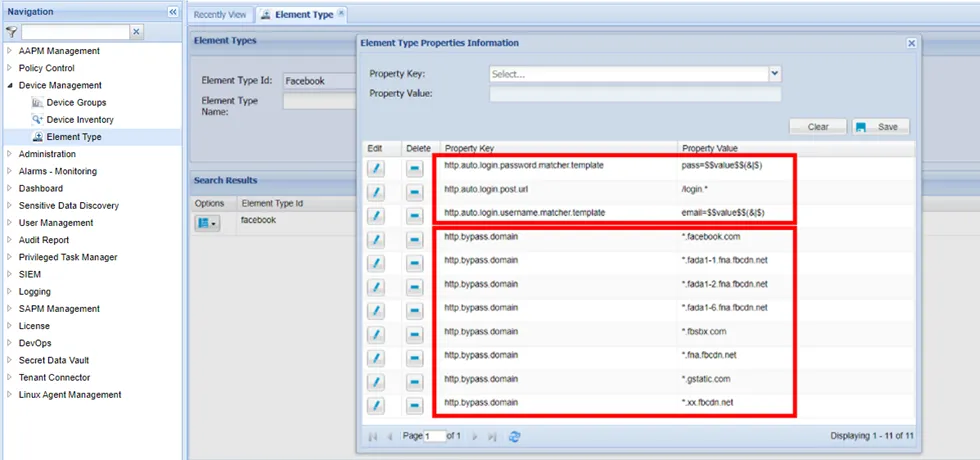

- All of these parameters need to be configured in the Element Type Property as illustrated in the screenshot below.
The auto login mechanism is triggered when the username/password field is empty or an auto login keyword text is entered. Some of the websites allow the username/password field prompt to be empty and the login button can be clicked, while other websites do not allow it.
