Reference Guide
...
Monitoring
Instance Status
The instance status section shows critical health indicators for each instance, including master or controlled roles, and operational statuses. The status of the Kron PAM environment can be accessed here.
- There are two separate layers: The Controller and the controlled instances.
- The following information is available for each instance:
- Instance name
- Instance IP
- The master identifier of the instance in question is the master. Running or Stopped instance status identifier.
- One of three different status icons:
- A green check mark if the system is completely healthy and there are no alarms.
- A red exclamation point if the instance is running but some services are down, or some thresholds have been exceeded.
- A red cross mark if the instance is down.
When an instance is selected, the rest of the screen will display that instance’s performance data.

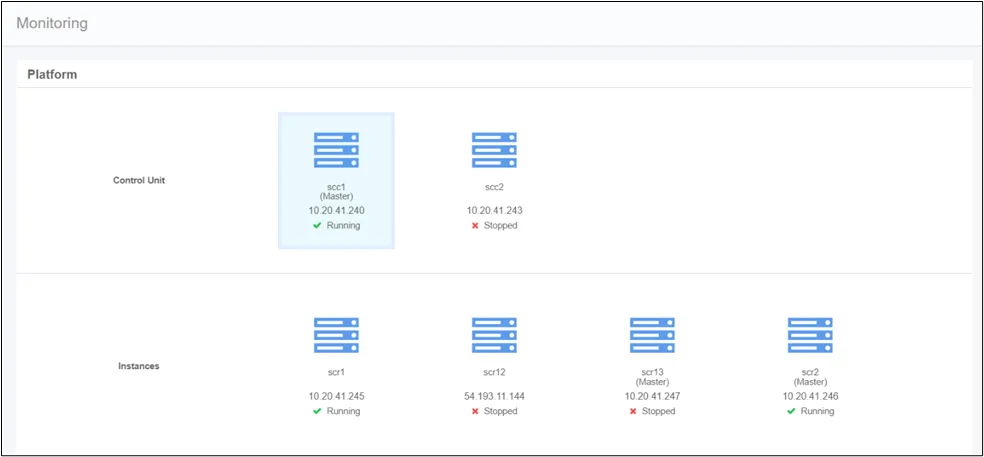

Instance health status in Monitoring Screen
