VRF Support on Tenants

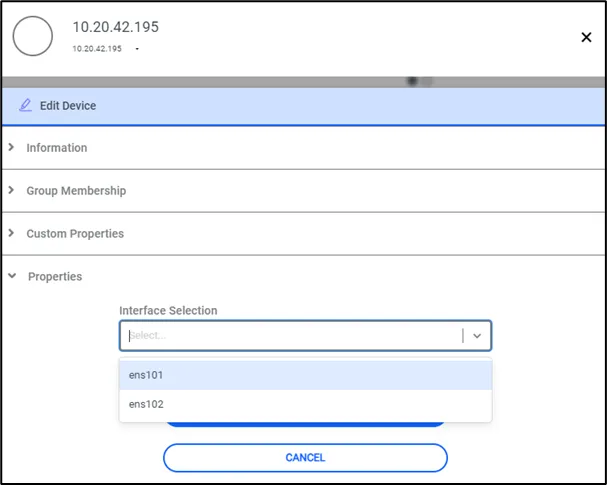

the vrf (virtual routing and forwarding) feature supports different network interfaces on the different tenant environments’ devices in a multitenant environment, every tenant has their own devices, and all those devices may have the same ip addresses from the kron pam point of view, as those tenants are under the same kron pam instance, two devices cannot have the same ip addresses to solve this problem, kron pam has added functionality to assign vrf interfaces to tenants, allowing the devices to direct their network communication over these assigned interfaces predefined interfaces can be selected when creating the tenant, as described in the section docid\ u3mfufj 8ma6ob8ntb9hl once the predefined interfaces have been selected, they can now be assigned to an added device under the tenant environment click the device options button and select edit device to select from the available interfaces in the properties field the interface can also be selected when adding a new device this allows devices under different tenants to have network transportation from different network interfaces
