Reference Guide
...
TACACS+ Access Manager
MSCHAPv2 RADIUS Configuration

Single Connect GUI Configurations

2min

The System admin should make the following configurations:

  1. Establish an SSH connection to Single Connect as pamuser user.
  2. Switch over to the root account using the command: sudo su
  3. Open the /etc/hosts file using the command: vi/etc/hosts

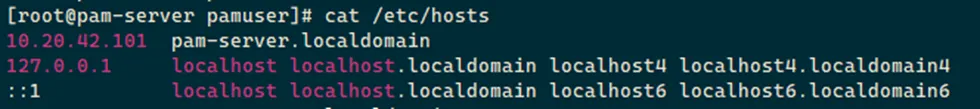

  4. Add the following line to the top of the list if there is no similar entry:
Hostname/Domain
Hostname/Domain

  1. Open the /etc/sysconfig/network-scripts/ifcfg-ens192 file with the command: vi /etc/sysconfig/network-scripts/ifcfg-ens192
  2. Make sure that Primary DNS (DNS1) is the Active Directory host IP in that file.
  3. The interface name (ens192) may be different on your system, please check the correct interface configuration file.
  4. Restart the network service with the command: systemctl restart network

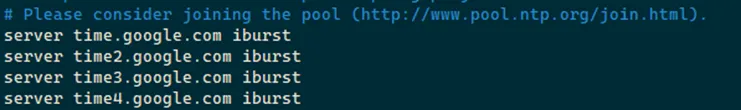

  5. The NTP servers should be changed. Open the chrony config file with the command: vi /etc/chrony.conf
  6. Edit the configurations in the config file according to the information given below: server time.google.com iburst server time2.google.com iburst server time3.google.com iburst server time4.google.com iburst
NTP Config
NTP Config

  • Execute the commands: systemctl enable chronyd && systemctl restart chronyd timedatectl set-ntp true
