User/Device/Policy Definition
Adding a Database as a Device
3min
The target database is configured as a device:
- Navigate to Device Management > Device Inventory menu.
- Click the New Device Discovery button.
- Enter the IP address, port (if not set, the default port is used according to the access protocol), and the access protocol, and select the Device Group for the assigned device should be in.
- Click the Discover and Add button.
Adding Database
The port number is the identifier of the connection to ORACLE, MSSQL, MySQL and Cassandra, Teradata, Hive, PostgreSQL, and DB2 via a Single Connect SQL Proxy. The port number must be defined in the Device Properties of the MSSQL, MySQL and Cassandra, Teradata, Hive, PostgreSQL, DB2, SAP Hana, and Couchbase databases.
The following system configuration parameter should be set for the port assignment option:
- Navigate to Administration > System Config Man.
- Set the “sql.proxy.bind.port.range” parameter with the requested port range.
Parameter Name | Parameter Value |
|---|---|
sql.proxy.bind.port.range | Port range (e.g. 6000-7000) |
- Navigate to Device Management > Device Inventory.
- Right-click the defined database device and select Show properties.
- Set the sql.proxy.bind.port property.
- Click the Auto Assign button.

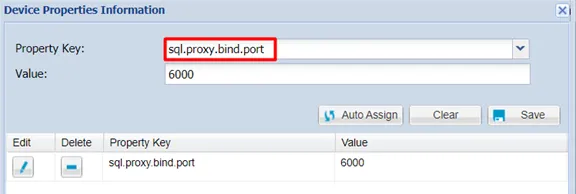

SQL Proxy Bind Port
Multiple bind ports can be added using a comma “,” without a space to separate them. Ex: 4042,4141,1313
